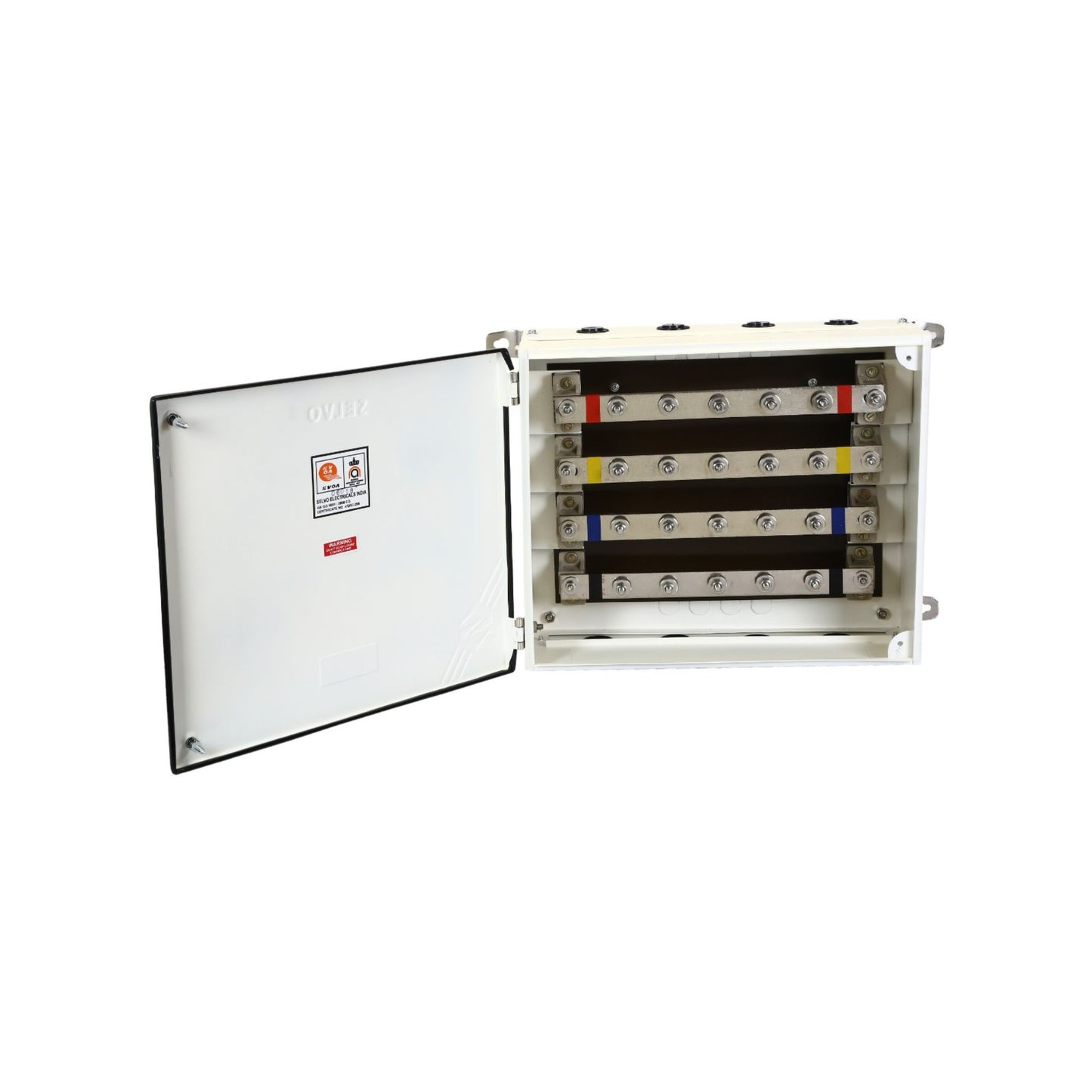

SELVO 320 Amps 415 Volts Step Type Busbar Chamber Box

Introducing The Selvo Step Type Busbar Chamber Distribution Board, a reliable and efficient solution for organized electrical distribution. Designed for diverse applications in both residential and commercial settings, this distribution board ensures streamlined power management. Available in current rating range from 32A to 800A.Trust Selvo for a durable and well-designed solution in organized electrical distribution.

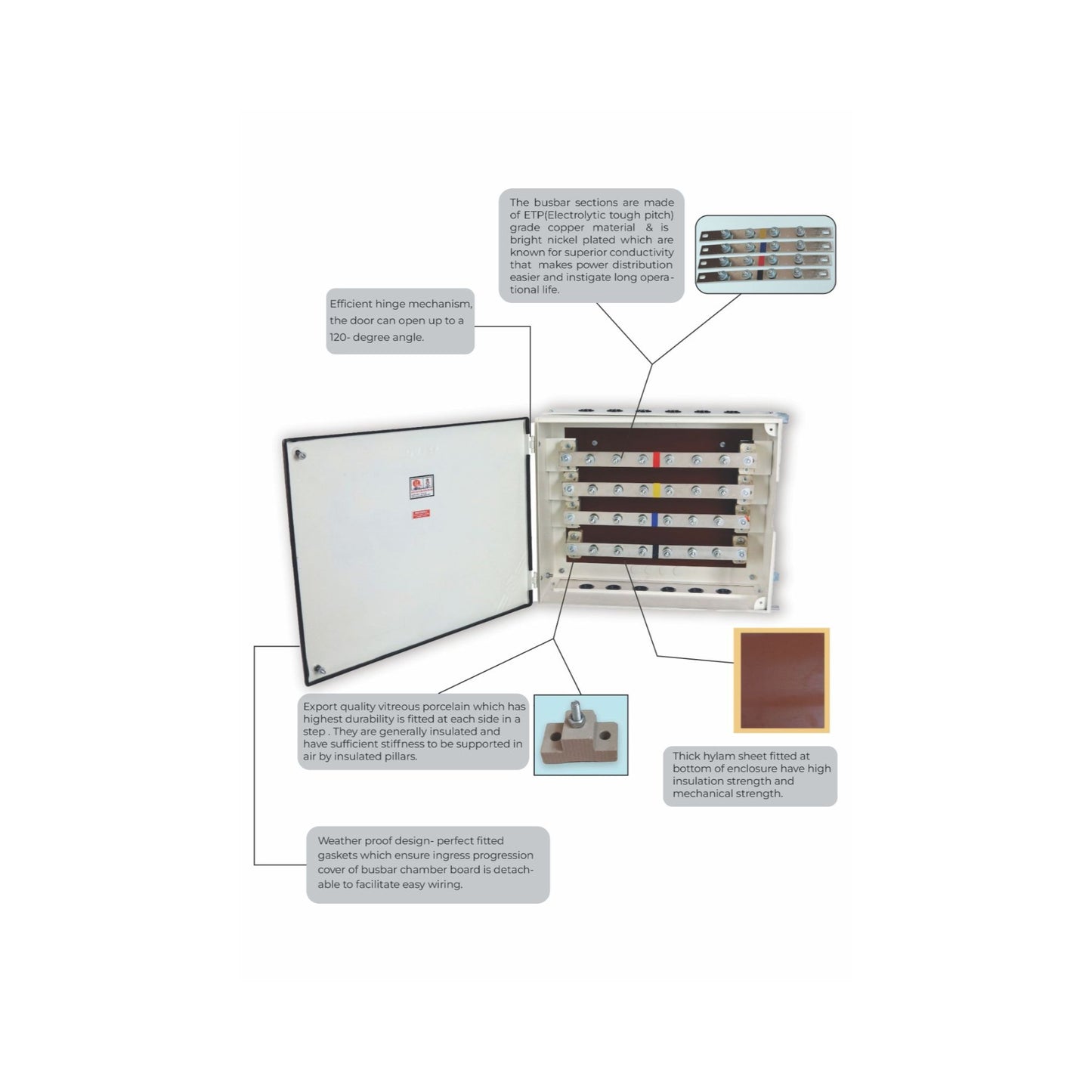

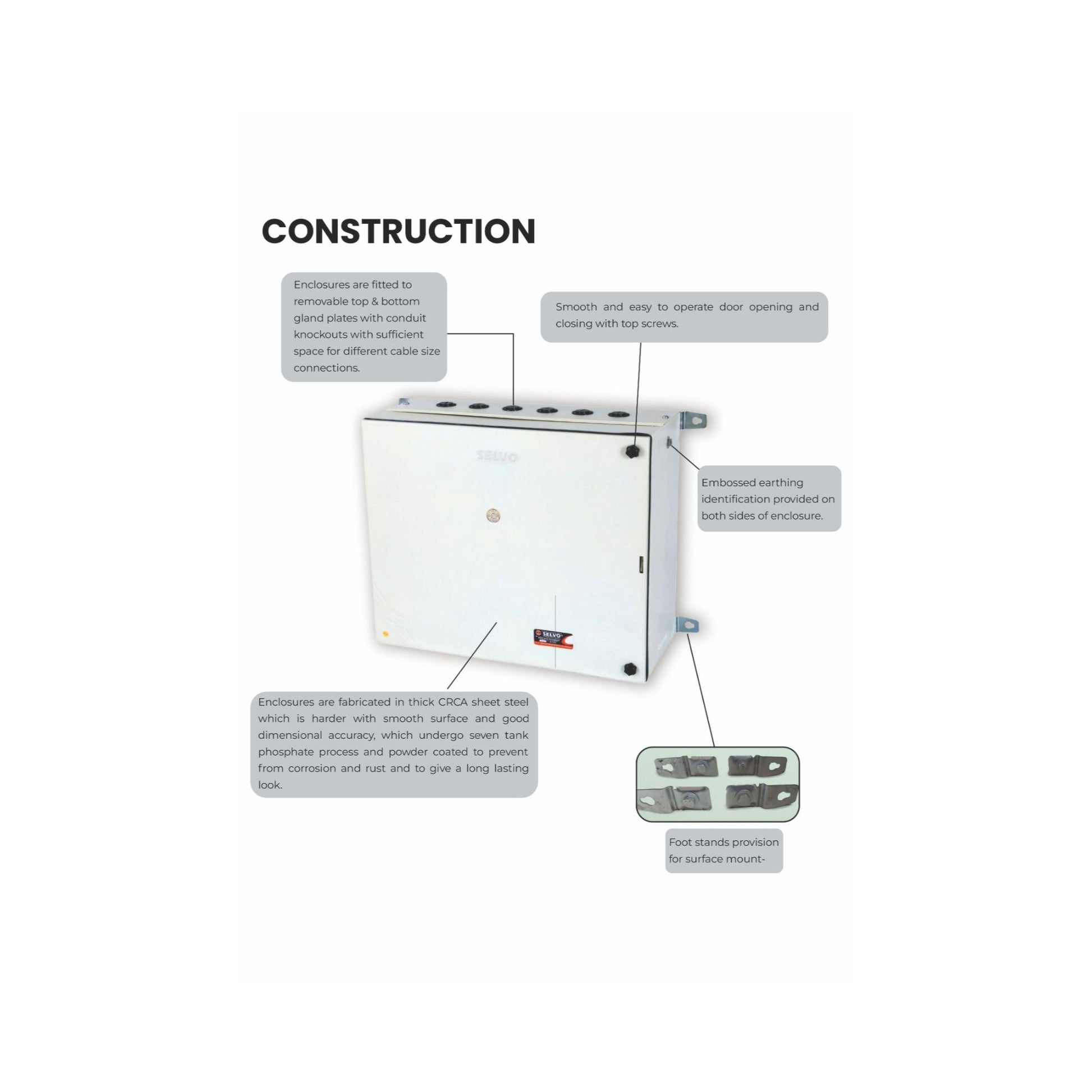

Enclosures are made from thick CRCA sheets, protected with a seven-tank phosphating process, and powder-coated to prevent corrosion. Copper strips are used for better conductivity and are fitted in steps. Fire-retardant bakelite sheets are fitted at the interior bottom of the chamber and also have high insulation properties.

Embossed earthing terminals are provided on both sides, enhancing safety. Enclosures are fitted to the removable top and bottom gland plates with conduit knockouts, offering sufficient space for different cable-size connections.

The Step type busbar chamber is a critical component in electrical distribution systems, providing a centralized point where multiple electrical circuits can connect, distribute, and manage power within a facility. It houses thick strips of ETP GRADE copper material and is bright nickel plated to efficiently conduct electricity and promote long operational life. SELVO busbars are sized according to the maximum current they need to carry, ensuring that power is transmitted with minimal losses and without overheating.

The Basic principle behind the busbar is that, it collects power supply from the input terminal ( or incoming feeders ) and distributes it to various output loads ( or outgoing feeders ) with greater efficiency in contrast to traditional wiring & reduces overall cost while allowing for greater flexibility. These devices are used to safely implement three-phase power distribution systems often in large environment.
