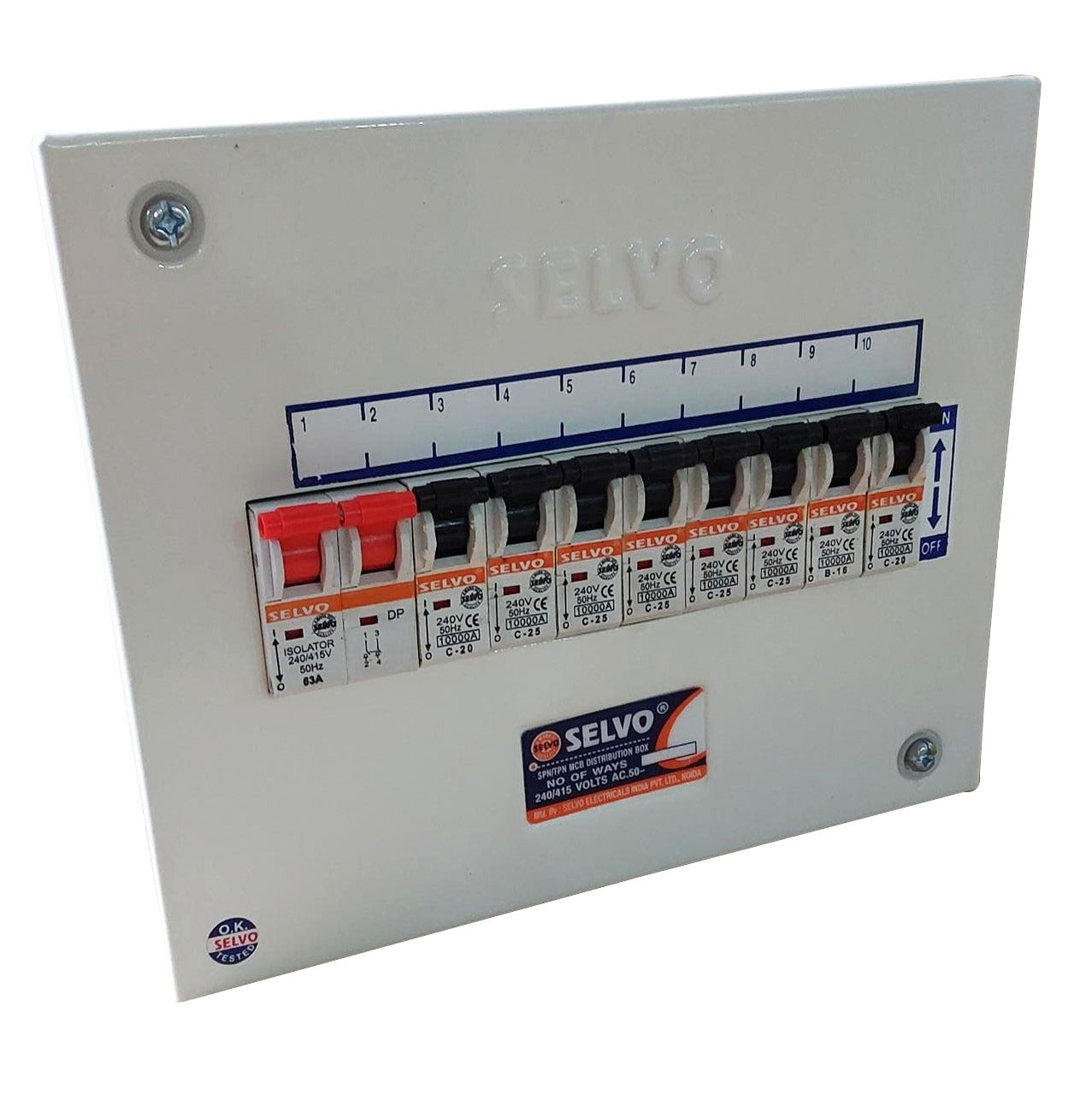

SELVO 10 Way SPN Single door Distribution Board

SELVO presents wide range of distribution boards that are aesthetically designed which varies in sizes depending on the size of property and how many circuits are being controlled inside consumer unit . The DB divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure . SELVO DB's are available in Single / Double door with SPN and TPN versions .

Enclosures are fabricated in CRCA sheets and undergo seven tank phosphate process & with anti-corrosive powder coating for superior finish and added durability. CRCA Sheet thickness is 1 mm

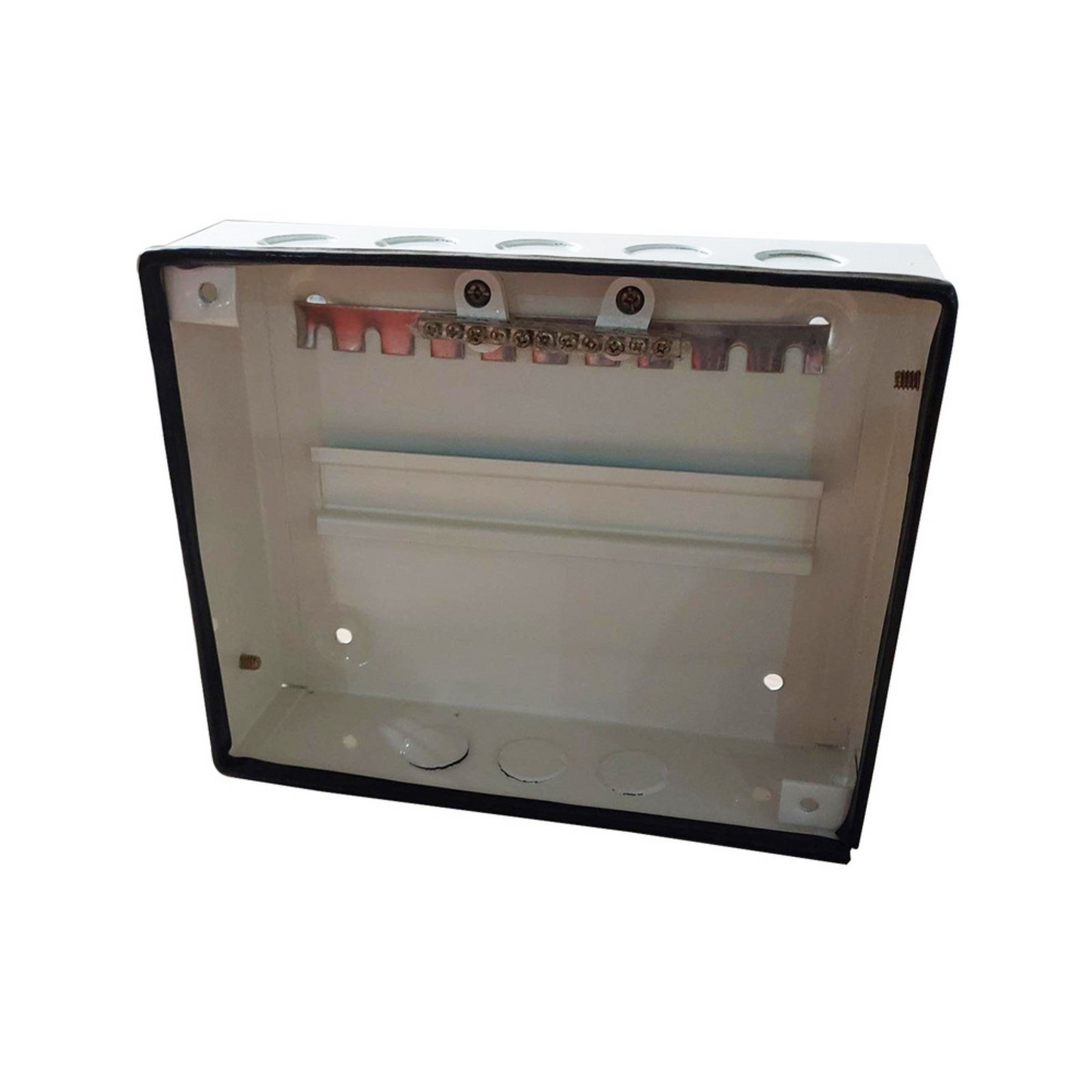

Inbuilt with standard 35mm din channel for easy fixing & removing MCB, Isolator and RCCB.

High quality brass neutral and earth links to prevent temperature rise and promote safe operation

Earthing provision on both sides of D.B required for protection against stray charges producing leakage current, an additional safety factor & equipped with stainless steel screws that prevent rusting of surface.

Silver plated 100A insulated busbar which is conductive material through which electricity flows along and connects into each MCB’s which makes installation easier rather than having lot of cables.

Detachable gland plates facilitate easy entry and exit of cables

Identification level and blank plates will be provided for the circuit.

Adequate space for wiring is provided to ensure proper distribution of neutral & earth wires.

For maintenance purpose each circuit can be individually isolated to have uninterrupted performance under fault condition so that rest of the circuit are not affected

Degree of protection is IP 30

Suitable for surface and flush mounting
